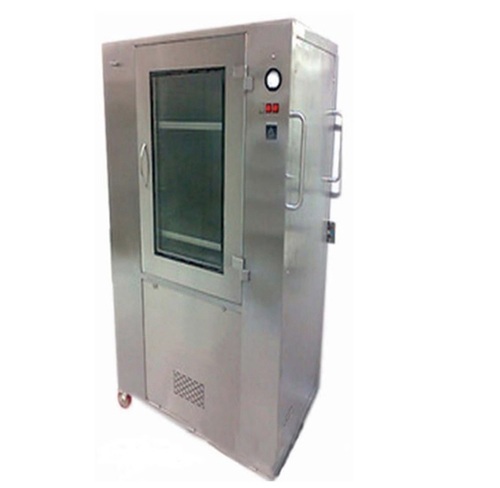

MOBILE LAMINAR AIR FLOW TROLLEY

Get a Price/Quote

Product Details:

Room Type Clean Room/Laboratory
Assembly Ready to Use/Pre-Assembled
Height 1200 mm
General Use Laboratory Use for Aseptic Transfer
Brand Name Custom/Generic
Feature Mobile, HEPA Filter, Low Noise, UV Lamp
Technology HEPA Filtration Laminar Flow
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

MOBILE LAMINAR AIR FLOW TROLLEY Price And Quantity

Minimum Order Quantity 1 Unit

Side Panels Acrylic/Transparent Panels
Control Panel Touch/Soft Switch Panel
Front Door Lift-Up/Sliding Acrylic Panel
Pre-Filter Washable Pre-Filter Provided
HEPA Filter Efficiency 99.97% efficiency at 0.3 micron
Power Supply 230V AC 50Hz
Noise Level Below 65 dB
Work Surface Stainless Steel (polished)
Usage/Application Safe Transfer of Materials in Clean Room
Mobility Heavy Duty Lockable Castor Wheels
Illumination LED/Fluorescent Internal Light
Air Flow Velocity 0.3 - 0.45 m/s

MOBILE LAMINAR AIR FLOW TROLLEY Product Specifications

Technology HEPA Filtration Laminar Flow
Finish Matte/Glossy SS Finish
Feature Mobile, HEPA Filter, Low Noise, UV Lamp
Furniture Type Laboratory Trolley
Material Stainless Steel
Folded NO
Design Modular with Castor Wheels
Color Silver/White (Powder Coated/SS Finish)
Metals Type Stainless Steel (SS 304/316)
Width 600 mm
Weight Approx 50-80 kg
General Use Laboratory Use for Aseptic Transfer
Height 1200 mm
Assembly Ready to Use/Pre-Assembled
Room Type Clean Room/Laboratory
Laboratory Furniture Type Mobile Laminar Air Flow Trolley
Brand Name Custom/Generic

Side Panels Acrylic/Transparent Panels
Control Panel Touch/Soft Switch Panel
Front Door Lift-Up/Sliding Acrylic Panel
Pre-Filter Washable Pre-Filter Provided
HEPA Filter Efficiency 99.97% efficiency at 0.3 micron
Power Supply 230V AC 50Hz
Noise Level Below 65 dB
Work Surface Stainless Steel (polished)
Usage/Application Safe Transfer of Materials in Clean Room
Mobility Heavy Duty Lockable Castor Wheels
Illumination LED/Fluorescent Internal Light
Air Flow Velocity 0.3 - 0.45 m/s

MOBILE LAMINAR AIR FLOW TROLLEY Trade Information

Payment Terms Paypal, Cash Advance (CA), Telegraphic Transfer (T/T)
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

SS 304 Sheet-1 mm thick sheet matt finished
Interlocking System with Electro Magnetic Single Door Interlock Arrangement System Single Side Display with indication & feather Touch Switches For Door Open & Close Light,UV light, Motor Blower individual Switches with Digital Hour Meter
Hepa Filter 0.3 micron Box Type, Moc:Aluminium, Media:Micro Fiber Glass, Efficiency:99.999% down to 0.3 Micron,Grade:H14
Fine Filter 5 micron Flange Type, Moc:Aluminium, Media:Non Woven synthetic Polyester,Efficiency:95% down 5 Micron, Grade:EU 5
Double Shaft Motor Blower,0.5 HP, 1400/ 2800 R.P.M, 230 volt, 1 Phase
Magnehlic Guage 0-25 mm wc
SS Atmosphere Nozzle (SS 304)
SS 304 DOP Port for PAO test Front Door Toughen Glass View Panel Caster Wheel SS 304 Bracket with PU Wheel SS 304 Hinges For Door
UPS Inverter with battery Backup upto 2 hrs ON/OFF Switch Socket 16 Amp, 230 V
UV Light 5-18 watt with Hour Meter
Flourescent light 5-18 watt Electrical Supply 230V AC 1-Phase

Superior HEPA Filtration Technology

This trolley incorporates a HEPA filter capable of achieving 99.97% efficiency for particles as small as 0.3 microns, maintaining an ultra-clean environment crucial for sensitive laboratory transfers. Washable pre-filters extend filter life and reduce maintenance.

Optimized Mobility and Safety

The mobile design, featuring lockable heavy-duty castor wheels, ensures effortless movement and reliable stability in any laboratory or cleanroom setting. Its stainless steel construction provides both strength and easy sanitation, while the acrylic panels maintain visibility and safety.

User-Friendly Operation and Maintenance

A touch or soft switch panel allows simple, intuitive control over airflow and illumination. With ready-to-use assembly and minimal noise output, this trolley seamlessly integrates into any workflow to support sterile methodologies and safe material handling.

FAQ's of MOBILE LAMINAR AIR FLOW TROLLEY:

Q: How does the Mobile Laminar Air Flow Trolley maintain a sterile environment during use?

A: The trolley maintains a sterile workspace using a HEPA filter with 99.97% efficiency at 0.3 micron, ensuring that airborne particulates are filtered out. The unidirectional laminar airflow (0.3-0.45 m/s) and washable pre-filter work together to further limit contamination risk.

Q: What materials and finishes are used for the trolley's construction?

A: The trolley is made from high-quality stainless steel (SS 304/316), offering durability and corrosion resistance. Its work surface has a matte or glossy polished finish, while side and front panels use transparent acrylic for visibility.

Q: When is it recommended to use this laminar air flow trolley?

A: It is ideal for situations that require aseptic transfer of materials in clean rooms and laboratories-in applications such as microbiology, pharmaceuticals, and electronic manufacturing-where strict hygiene standards must be maintained.

Q: Where can the Mobile Laminar Air Flow Trolley be effectively used?

A: This trolley performs best in clean rooms and various laboratory environments where controlled, particle-free air and safe material transfer are required. Its mobility allows it to be stationed wherever protection is currently needed.

Q: What benefits does the touch/soft switch control panel provide?

A: The touch or soft switch panel simplifies operation, allowing users to quickly control internal lighting and airflow without direct physical contact, reducing contamination risks and improving convenience.

Q: How is the noise level managed during operation?

A: The trolley is engineered to keep the operational noise below 65 dB, ensuring minimal disturbance in sensitive laboratory settings without compromising air flow efficiency.

Q: What is the process for maintaining the HEPA and pre-filters?

A: The pre-filter is washable and can be cleaned periodically to extend the service life of the HEPA filter. HEPA filters should be replaced as per manufacturer guidelines or whenever there is a significant reduction in airflow efficiency.
