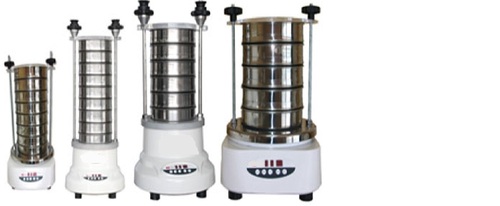

Electromagnetic Sieve Shakers

5000 INR

Get a Price/Quote

Product Details:

Capacity Up to 8 Sieves (200 mm or 8 inch dia.)
Feature No mechanical moving parts, maintenance free, silent operation
Power Source Electric
Temperature Range Ambient to 40C
Automation Grade Semi-Automatic
Core Components Electromagnetic drive, controller, sieve holders
Frequency 50 Hz
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Electromagnetic Sieve Shakers Price And Quantity

Price 5000 INR
Minimum Order Quantity 1 Piece

Electromagnetic Sieve Shakers Product Specifications

Usage For particle size analysis in laboratories
Display Type Digital Timer display
Capacity Up to 8 Sieves (200 mm or 8 inch dia.)
Power Source Electric
Feature No mechanical moving parts, maintenance free, silent operation
Temperature Range Ambient to 40C
Automation Grade Semi-Automatic
Dimension (L*W*H) 520 x 430 x 150 mm
Weight Approx. 40 kg
Type Electromagnetic Sieve Shaker
Core Components Electromagnetic drive, controller, sieve holders
Frequency 50 Hz
Voltage 220-240 V AC
Equipment Materials Stainless Steel body with powder coated finish
Measurement Range 20 microns to 4 mm
Model No ESS-200
Accuracy High reproducibility within 2% deviation

Electromagnetic Sieve Shakers Trade Information

Supply Ability 5-10 Piece piece Per Month
Delivery Time 6-8 Week

Product Description

The electromagnetic sieve shaker is used for particle tests separations. Measuring range begins with 0.040mm.

It has a polyurethane resin framework with an electronic power control provided of intermittence and operation time system.

The sieve shaker transmits a three-dimensional movement to the sieves to obtain an optimum particle separation.

The fastening system consists of two stainless steel threaded rods, two bakelite knobs and a transparent methacrylate lid that transfers pressure to the sieves for better adjustment.

High Accuracy and Efficiency

With separation efficiency above 99% and reproducibility within 2%, the ESS-200 ensures reliable, repeatable testing. Digital control extends flexibility and accuracy, making it ideal for demanding laboratory applications where precise particle size distribution is essential.

Robust Design and Quiet Operation

Constructed from SS-304 stainless steel and powder-coated for durability, the shaker operates silently with a noise level under 60 dB. Its electromagnetic mechanism features no mechanical moving parts, resulting in low maintenance and long-term operational reliability.

Versatile and User-Friendly

Compatible with 200 mm and 8-inch diameter sieves, the unit enables testing of samples ranging from 20 microns to 4 mm. The quick-release adjustable clamp and digital timer streamline processes, accommodating various laboratory requirements efficiently.

FAQs of Electromagnetic Sieve Shakers :

Q: How does the Electromagnetic Sieve Shaker achieve high separation efficiency?

A: The ESS-200 utilizes an electromagnetic drive to uniformly agitate sieves, ensuring particles are efficiently and reproducibly separated with accuracy above 99%. This technology minimizes human error and delivers consistent results.

Q: What are the main benefits of using a quick-release adjustable clamping device?

A: The quick-release adjustable clamp allows for rapid and secure placement or removal of sieves, significantly reducing sample preparation time and making the process more convenient for users.

Q: Where can the Electromagnetic Sieve Shaker be used effectively?

A: This sieve shaker is ideal for laboratory settings involved in quality control, research, and material analysis, especially in industries such as pharmaceuticals, construction, and mining. It complies with IS, ASTM, and ISO standards for widespread acceptance.

Q: When should the timer feature be used on this sieve shaker?

A: The timer (1 to 60 minutes) should be used when precise agitation durations are required for test consistency or when processing multiple samples in succession, affording both timed and continuous operation flexibility.

Q: What sieves are compatible with the ESS-200 model?

A: The shaker accommodates both 200 mm and 8-inch diameter sieves with a maximum individual sieve height of 50 mm, allowing up to eight sieves per test for broad applicability in particle size analysis.

Q: How does the shaker ensure low maintenance and quiet performance?

A: The electromagnetic drive operates without mechanical moving parts, eliminating the need for frequent servicing and enabling the shaker to run silently at less than 60 dB, promoting a comfortable laboratory environment.

Q: What is the range of particle sizes that can be analyzed with this equipment?

A: The ESS-200 efficiently analyzes particle sizes from as fine as 20 microns up to 4 mm, making it suitable for a wide array of sample types encountered in diverse laboratory applications.
