NC45 Non-Contact geometry benchtop spectrophotometer

5000 INR

Get a Price/Quote

Product Details:

Capacity Non-contact measurement, suitable for flat and curved surfaces up to 90 mm thick
Feature Non-contact 45°:0° geometry, simultaneous color and gloss measurement, UV included/excluded modes
Power Source AC Adapter
Model No NC45
Frequency 50/60 Hz
Temperature Range 10°C to 40°C
Accuracy ΔE*ab ≤ 0.02 (white tile measurement)
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

NC45 Non-Contact geometry benchtop spectrophotometer Price And Quantity

Price 5000 INR
Minimum Order Quantity 1 Piece

NC45 Non-Contact geometry benchtop spectrophotometer Product Specifications

Weight 8.5 kg
Power Source AC Adapter
Feature Non-contact 45°:0° geometry, simultaneous color and gloss measurement, UV included/excluded modes
Capacity Non-contact measurement, suitable for flat and curved surfaces up to 90 mm thick
Dimension (L*W*H) 430 mm × 260 mm × 190 mm
Display Type 4.3-inch color LCD touchscreen
Voltage 100-240V AC
Core Components CCD detector, Integrated light source, Calibration standard, Power supply
Accuracy ΔE*ab ≤ 0.02 (white tile measurement)
Automation Grade Automatic
Measurement Range Reflectance: 0% to 200%
Type Benchtop Spectrophotometer
Model No NC45
Frequency 50/60 Hz
Temperature Range 10°C to 40°C
Equipment Materials Precision-engineered metal and high-impact polymer housing
Usage Color and gloss measurement for paints, plastics, coated surfaces, automotive parts, and more

NC45 Non-Contact geometry benchtop spectrophotometer Trade Information

Supply Ability 5-10 Piece piece Per Month
Delivery Time 6-8 Week

Product Description

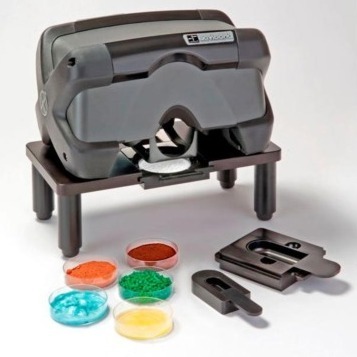

NC45 Non-Contact geometry benchtop spectrophotometer

The NC45 Non-Contact 45/0 geometry benchtop spectrophotometer is designed for the colour measurement of many types of wet and dry samples including powders, pastes, gels, plastics and paints.

Key product features are as follows:

- Non-contact colour measurement allows sample measurements from a distance, eliminating surface distortion caused by contact based measurement methods
- Full system LED illumination provides years of reliable performance
- LED illumination is unaffected by ambient light conditions
- Line of Sight^(TM) visibility to the sample enables technicians to quickly and easily position the sample for measurement
- Active Visual Targeting^(TM) projects a prominent illuminated target ring onto the sample for precise and accurate measurements
- Dual measurement spot sizes, 6 mm (1/4") and 12 mm (1/2") which can quickly and easily be switched without the need to recalibrate
- Integrated gloss sensor provides 60° correlated gloss values
- Versatile design improves measurement capabilities on two and three dimensional objects
- Flexible Quality Control software allows user customization (provided separately)

Precision Non-Contact Measurement

Engineered with 45:0 geometry and selectable aperture sizes, the NC45 ensures precise color and gloss readings without physical contact, preserving delicate or coated surfaces. This makes it ideal for measuring objects that are difficult or impossible to measure with contact-based devices, ensuring reliable results.

Advanced Data Management and Connectivity

Featuring onboard memory with USB export, Ethernet connectivity, and a user-friendly 4.3-inch color touchscreen, data handling is simple and flexible. Automated calibration (with included reference tiles) and versatile software support enhance seamless integration into any quality control or manufacturing workflow.

Versatile Industrial Applications

Designed for use in paint, plastics, automotive, and coated materials industries, the NC45 performs simultaneous color and gloss assessments. Its robust construction and environmental tolerance (10C to 40C, 085% RH) make it suitable for various manufacturing and laboratory environments.

FAQs of NC45 Non-Contact geometry benchtop spectrophotometer:

Q: How does the NC45 measure color and gloss without contact?

A: The NC45 uses 45:0 non-contact geometry with selectable apertures and a full-spectrum LED light source. This setup allows accurate color and gloss measurement from a distance, preventing any risk to sensitive surfaces.

Q: What surfaces and materials can the NC45 analyze?

A: It is designed to measure flat and curved surfaces up to 90 mm thick, making it suitable for paints, plastics, coated objects, and automotive parts regardless of shape or material composition.

Q: When should I perform calibration, and how is it done?

A: Calibration can be done automatically or manually using the included reference tiles. It is recommended before starting critical measurement sessions, after relocating the instrument, or following significant changes in ambient conditions.

Q: Where can the data from measurements be stored and exported?

A: Data is securely stored in the spectrophotometers onboard memory and can be exported via USB or Ethernet connection for further processing and record-keeping.

Q: What color spaces and standards does the NC45 support?

A: The instrument supports a wide range of color spaces and standards, including CIE L*a*b*, L*C*h, Hunter Lab, XYZ, Yxy, and more, making it versatile for varied industry requirements.

Q: How fast is the measurement process with the NC45?

A: Each color and gloss measurement takes less than two seconds, enabling rapid inspection and increased throughput in busy production or laboratory settings.

Q: What are the main benefits of using the NC45 spectrophotometer?

A: Key benefits include non-contact precision measurement, robust build quality, multi-surface compatibility, rapid operation, comprehensive connectivity, and user-friendly operation, making it an indispensable quality control tool.
