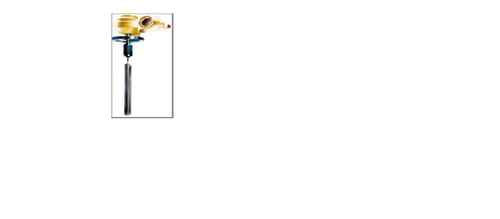

Displacer Type Level Transmitter

5000 INR/Piece

Get a Price/Quote

Product Details:

Temperature Range -40C to +150C
Model No Varies by manufacturer (e.g., DTLT-100 series)
Frequency 50/60 Hz (as required for transmitter supply)
Measurement Range 300 mm to 5000 mm (customizable)
Feature Suitable for interface & total level measurement, high reliability, minimal maintenance
Accuracy 0.5% of span
Core Components Displacer, torque tube assembly, transmitter electronics, mounting flange
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Displacer Type Level Transmitter Price And Quantity

Price 5000 INR/Piece
Minimum Order Quantity 1 Piece

Mounting Orientation Top- or side-mounted
Cable Entry 1/2" NPT (standard), others as specified
Zero and Span Adjustment Field adjustable (mechanical or electronic)
Process Connection Flanged or threaded, various sizes (e.g., 2"/3"/4" as per requirement)
Output Signal 4-20 mA, 2-wire loop powered
Explosion Proof Available on request (ATEX/Flameproof certified)
Pressure Rating Up to 40 bar (depending on design)
Application Media Liquids, including corrosive and viscous fluids
Enclosure Rating IP65 (standard), higher ratings available
Material Certification MTC/EN 10204 3.1 available on request

Displacer Type Level Transmitter Product Specifications

Temperature Range -40C to +150C
Display Type No local display (output via transmitter signal)
Usage Continuous level measurement in tanks, vessels, and process applications
Model No Varies by manufacturer (e.g., DTLT-100 series)
Type Displacer Type Level Transmitter
Measurement Range 300 mm to 5000 mm (customizable)
Frequency 50/60 Hz (as required for transmitter supply)
Equipment Materials Stainless Steel 304/316, PTFE, or as specified
Feature Suitable for interface & total level measurement, high reliability, minimal maintenance
Accuracy 0.5% of span
Core Components Displacer, torque tube assembly, transmitter electronics, mounting flange
Automation Grade Automatic
Power Source 24V DC (standard), others on request
Capacity Up to 5 m (customizable)
Dimension (L*W*H) Depends on model (typically from 500 mm to 2 m in length)
Voltage 24V DC (typical supplied voltage)
Weight Approx. 8-15 kg (depending on size/model)

Mounting Orientation Top- or side-mounted
Cable Entry 1/2" NPT (standard), others as specified
Zero and Span Adjustment Field adjustable (mechanical or electronic)
Process Connection Flanged or threaded, various sizes (e.g., 2"/3"/4" as per requirement)
Output Signal 4-20 mA, 2-wire loop powered
Explosion Proof Available on request (ATEX/Flameproof certified)
Pressure Rating Up to 40 bar (depending on design)
Application Media Liquids, including corrosive and viscous fluids
Enclosure Rating IP65 (standard), higher ratings available
Material Certification MTC/EN 10204 3.1 available on request

Displacer Type Level Transmitter Trade Information

Supply Ability 5-10 Piece Per Month
Delivery Time 6-8 Week

Product Description

We are proud to be a reliable name in the industry, presently engaged in exporting a huge range of Displacer Type Level Transmitter. These are made from 316 stainless steel by a team of veteran engineers at our vendors modern machining facility. Our Displacer Type Level Transmitter is designed to measure liquid level, interface and density. Be it in domestic market or international, our offered transmitters are cherished and acknowledged over the global platform.

Features:

Easy to operate
Accurate measurement
Rugged design

Further Details:

Displacer Type Level Transmitter Model

LT-N00-TF-A-D**A00

Spring = 5

Displacer = D

LT-N00-TF-A-D-5-D-A00

( Without Chamber)

Transmitter Head Assembly ( Electronic Housing ) in Cast, Epoxy Painted

Head Unit in IP 66, EExd Certified

No Flange 1 NPT Connection

Transmitter Wet Side : Pressure Tube

Material 316 Stainless Steel

Spring Material : Nimonic 90

Element Matrerial : SS 316

Electrical Connection : 1 NPT Conduit

Display Fitted with 4 digit LCD Display and Caliplug in Flameproof Housing

Power Supply 12 40 V DC , 2 Wire Loop Powered

Output 4 20 mA and HART Compatible

Offered model is LVDT Type

Operating Range 356 mm

Dead band : minimum 300 mm

Accuracy : < + / - 1 % of Output Span

Mobrey MLT100 Displacer Level Transmitter

Level, contents or interface measurement transmitter

Direct or external chamber mounting

Two-wire 24 Vdc loop-powered

420 mA HART output

ATEX Intrinsically safe and explosion-proof certified versions

Versatile Mounting and Output Options

The transmitter can be configured for top or side mounting to accommodate different tank or vessel designs. With a standard 4-20 mA output, it integrates seamlessly into most process control systems. Multiple process connections (flanged or threaded) and sizes ensure adaptability to site requirements.

Robust Construction for Demanding Applications

Constructed from SS 304/316 or PTFE as required, this device offers excellent resistance to corrosive and viscous fluids. It features an enclosure rated IP65 by default, with higher ratings and explosion-proof (ATEX/Flameproof) certification available for hazardous areas, ensuring safety and durability in challenging process environments.

Reliable Measurement and Easy Adjustment

With a measurement range customizable between 300 mm and 5000 mm, the transmitter delivers 0.5% accuracy. Mechanical or electronic field adjustment for zero and span simplifies setup and maintenance. Its designed for continuous operation in tanks, ensuring dependable level measurement with minimal oversight.

FAQs of Displacer Type Level Transmitter:

Q: How does a displacer type level transmitter work for measuring liquid levels?

A: A displacer type level transmitter operates on the buoyancy principle. As liquid level rises, the displacer experiences changing buoyant force, causing motion in a torque tube assembly. This mechanical movement is converted into an electronic output signal (4-20 mA), indicating the liquid level within the vessel or tank.

Q: What process connections and mounting options are available for this transmitter?

A: The transmitter supports both flanged and threaded process connections in various sizes, such as 2, 3, or 4, as per requirement. It can be mounted in either a top or side orientation, making it adaptable to many types of tanks and process vessels.

Q: Where can this transmitter be used and what fluids is it compatible with?

A: This device is suitable for continuous level measurement in tanks, vessels, and other industrial process applications. It is compatible with a wide variety of liquids, including corrosive and viscous fluids, thanks to its stainless steel or PTFE construction and robust design.

Q: What are the advantages and benefits of using this type of level transmitter?

A: Key benefits include high reliability, minimal maintenance, suitability for both total and interface level measurement, and reliable performance in harsh environments. Its automatic operation and field-adjustable settings make it easy to tailor for specific process requirements and ensure consistent level monitoring.

Q: When is explosion proof certification or higher enclosure rating recommended?

A: Explosion proof (ATEX/Flameproof) certification and higher enclosure ratings are recommended when the device is installed in hazardous or potentially explosive environments, such as chemical plants or refineries. These options provide added safety and compliance with industrial standards.

Q: How can zero and span adjustments be carried out in the field?

A: Zero and span adjustments are field adjustable using either mechanical adjustment on the transmitter hardware or electronically, depending on the model. This enables precise calibration to the required measurement range and specific application needs on site.

Q: What certifications and documentation are available for quality assurance?

A: Material certification (MTC/EN 10204 3.1) is available on request to ensure material and product traceability. Explosion proof and enclosure rating certifications can also be provided, supporting safety and quality requirements for diverse industry sectors.
