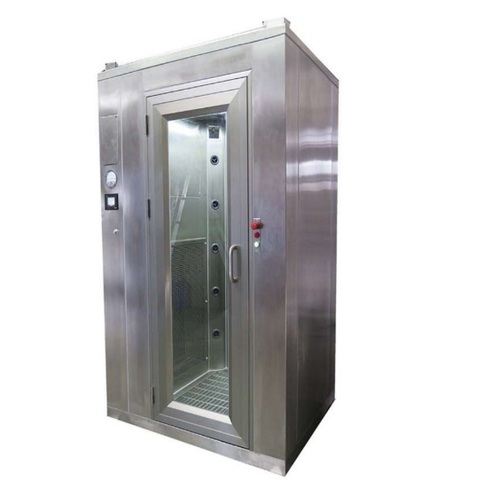

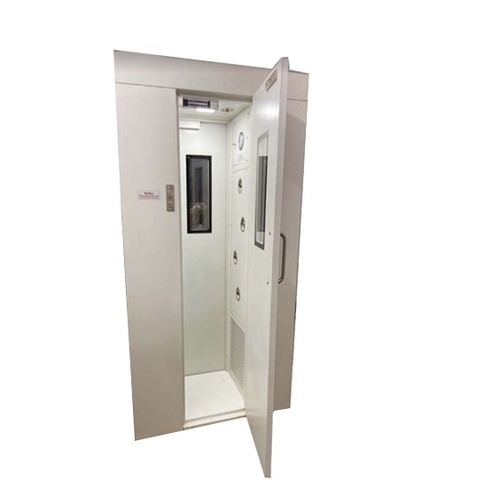

AIR SHOWER LAB

5000 INR/Unit

Get a Price/Quote

Product Details:

Technology HEPA Filtration
Assembly Self Assembled
Width 900 mm
Height 2100 mm
Furniture Type Modular Lab Furniture
General Use Commercial, Laboratory
Brand Name LABFIT
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

AIR SHOWER LAB Price And Quantity

Minimum Order Quantity 1 Unit
Price 5000 INR/Unit

Voltage 220V / 50Hz
Operating Mode Automatic/manual
Blower Type Centrifugal
Power Source Electric
Floor Anti-slip Stainless Steel Tray
Filtration Pre Filter + HEPA Filter (99.97%@0.3 micron)
Door Type Double Swing Door
Cycle Time 10-20 seconds
Control System Microprocessor Based
Application Entry decontamination in cleanroom & lab facilities
Lighting LED inbuilt
Air Velocity 22 m/s
Noise Level 68 dB
Nozzle Quantity 24 Stainless Steel Nozzles

AIR SHOWER LAB Product Specifications

Brand Name LABFIT
Folded NO
Color White / SS finish
Weight Approx. 250 Kg
Design Customizable Design
Feature Dust removal, contamination control
Metals Type Stainless Steel
Material Stainless Steel
Finish Powder Coated / SS
Room Type Clean Room
Technology HEPA Filtration
Assembly Self Assembled
Laboratory Furniture Type Air Shower
Furniture Type Modular Lab Furniture
Width 900 mm
Height 2100 mm
General Use Commercial, Laboratory

Voltage 220V / 50Hz
Operating Mode Automatic/manual
Blower Type Centrifugal
Power Source Electric
Floor Anti-slip Stainless Steel Tray
Filtration Pre Filter + HEPA Filter (99.97%@0.3 micron)
Door Type Double Swing Door
Cycle Time 10-20 seconds
Control System Microprocessor Based
Application Entry decontamination in cleanroom & lab facilities
Lighting LED inbuilt
Air Velocity 22 m/s
Noise Level 68 dB
Nozzle Quantity 24 Stainless Steel Nozzles

AIR SHOWER LAB Trade Information

Payment Terms Cash on Delivery (COD), Cash Advance (CA)
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

SS 304 Sheet-1 mm thik sheet matt finished
Interlocking System to ensure that both the doors cannot open at the same time & to ensure that both the door stay locked during the time of air flow.Time Setting for Air shower operation time (settable for 30 seconds to 5 minutes) Emergency Stop will be provided
Door entry Straight entry Straight exit and 90degree door opening
Hepa Filter 0.3 micron Box Type, Moc:Aluminium, Media:Micro Fiber Glass, Efficiency:99.999% down to 0.3 Micron,Grade:H14
Fine Filter 5 micron Flange Type, Moc:Aluminium, Media:NonWoven synthetic Polyester,Efficiency:95% down 5 Micron, Grade:EU 5
Double Shaft Motor Blowerr ,1.0/0.5 H.P, 2800 R.P.M, 230 volt, 1 Phase
Magnehlic Guage 0-25 mm
SS Atmosphere Nozzle (SS 304) S
SS 304 DOP Port for PAO test
Air Adjustable Nozzle 25 mm Dia
SS 304 doors with double walled flush glass view panels and door closer
Clear view Toughen Glass in door 5 mm thik glass
Blower generated Nozzle Air velocity 4000-6000 FPM with 25 mm dia. Nozzle which EffectivelyCleans thesurfaceofObject
SS 304 Hinges For Door
Fluorescent light 5-18 watt
Electrical Supply 230V AC 1-Phase

Ultimate Contamination Control

Equipped with an advanced HEPA filtration system and 24 strategically placed stainless steel nozzles, the LABFIT Air Shower Lab ensures maximum particulate removal for personnel or equipment before entering critical areas. High-velocity air jets effectively dislodge dust, significantly reducing the risk of contamination in controlled environments such as laboratories and cleanrooms.

User-Friendly and Versatile Operation

This air shower offers hassle-free usage, featuring a microprocessor-based control system for both automatic and manual operation. The large double swing doors, anti-slip stainless steel tray, and clear LED inbuilt lighting provide added safety and convenience. The system's cycle duration is adjustable between 10 and 20 seconds, accommodating various usage scenarios and user volumes.

Customizable and Durable Design

Manufactured from premium stainless steel with a powder-coated or SS finish, the unit ensures longevity, hygiene, and smooth upkeep. Customizable in size and finish, it integrates seamlessly with existing laboratory furniture, fulfilling both aesthetic and functional requirements. Self-assembly, modular construction, and customizable options cater to a broad range of commercial and laboratory environments.

FAQ's of AIR SHOWER LAB:

Q: How does the LABFIT Air Shower work to remove contaminants?

A: The LABFIT Air Shower Lab uses 24 stainless steel nozzles to blast high-velocity air (22 m/s) across personnel or equipment. This dislodges and captures surface dust and particles, which are then removed by a dual-stage pre-filter and HEPA filter system, achieving 99.97% filtration efficiency at 0.3 micron.

Q: What are the benefits of using an air shower in cleanroom facilities?

A: Using an air shower significantly reduces the risk of contamination by removing dust and particulate matter from individuals and objects before they enter sensitive environments. This helps maintain strict hygiene standards and protects both experiments and equipment in cleanrooms and labs.

Q: When should an air shower cycle be run during the entry process?

A: An air shower cycle should be performed every time personnel or critical equipment are about to enter a cleanroom or controlled laboratory area. The automatic or manual modes, facilitated by the microprocessor-based control system, allow flexibility and consistency in operation.

Q: Where is the LABFIT Air Shower best installed within facilities?

A: It is ideally installed at entry points to cleanrooms, sterile labs, or other areas requiring stringent dust and contamination control. The double swing doors and modular design allow easy integration into various facility layouts.

Q: What is the process for assembling and installing the Air Shower Lab?

A: The unit is designed for self-assembly with easy-to-follow instructions. Once assembled, it requires a 220V/50Hz electric power source, after which it is ready for use. Routine maintenance primarily involves periodic filter replacement and surface cleaning.

Q: How does the microprocessor-based control system enhance user operation?

A: The microprocessor-based system allows seamless switching between automatic and manual operation modes, adjustment of the air shower cycle (10-20 seconds), and real-time monitoring, making the air shower user-friendly and adaptable to different operational needs.

Q: What makes the design of the LABFIT Air Shower durable and safe for laboratory use?

A: It is constructed from corrosion-resistant stainless steel and equipped with an anti-slip floor tray, LED inbuilt lighting, and powder-coated or SS finish, ensuring long-term performance, safety, and easy maintenance in demanding lab environments.
