Lithium-Ion Battery Storage Cabinets

Name: Lithium-Ion Battery Storage Cabinets
Brand: NATIONAL ANALYTICAL CORPORATION
Price: 5000.0 INR
Availability: InStock

5000.0 INR/Unit

Get a Price/Quote

Product Details:

Shape Rectangular
Control Type Manual Lock & Electronic Control
Temperature Resistance Up to 200C
Power Supply AC Mains
Features Fire-resistant, Ventilation System, Lockable Doors, Spill Containment Tray, Alarm System
Glass Type Tempered Glass (Viewing Window)
Display Type Digital Display
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Lithium-Ion Battery Storage Cabinets Price And Quantity

Price 5000.0 INR/Unit
Minimum Order Quantity 1 Number

Lithium-Ion Battery Storage Cabinets Product Specifications

Glass Type Tempered Glass (Viewing Window)
Features Fire-resistant, Ventilation System, Lockable Doors, Spill Containment Tray, Alarm System
Display Type Digital Display
Material High-grade Steel with Epoxy Coating
Control Type Manual Lock & Electronic Control
Temperature Resistance Up to 200C
Equipment Type Storage Cabinet
Type Lithium-Ion Battery Storage Cabinet
Power Supply AC Mains
Equipment Materials Powder-Coated Steel
Application Secure storage & protection of lithium-ion batteries
Shape Rectangular
Voltage 220V
Capacity (Ltr) 350 Litres
Power 220V/50Hz
Dimension (L*W*H) 900 x 450 x 1800 mm

Color Yellow/Custom
Ventilation Integrated with Exhaust Port
Weight Approx. 95 kg
Alarm Over Temperature & Smoke Detector
Leakage Tray Removable, Chemical-resistant Tray
Door Type Double Door with Secure Locking
Mobility Heavy-duty Castor Wheels
Grounding Anti-static Grounding Terminal
No. of Shelves 4 Adjustable Shelves
Fire Rating 90 minutes

Lithium-Ion Battery Storage Cabinets Trade Information

Delivery Time 2 Week

Product Description

Fission004B

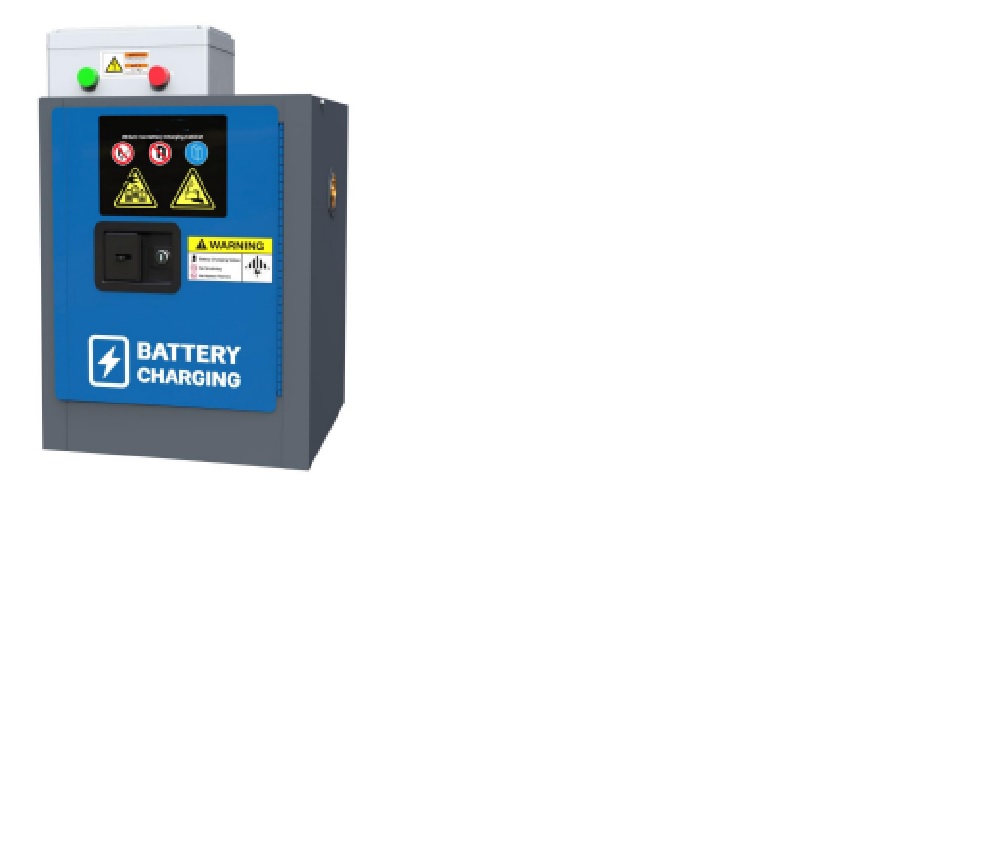

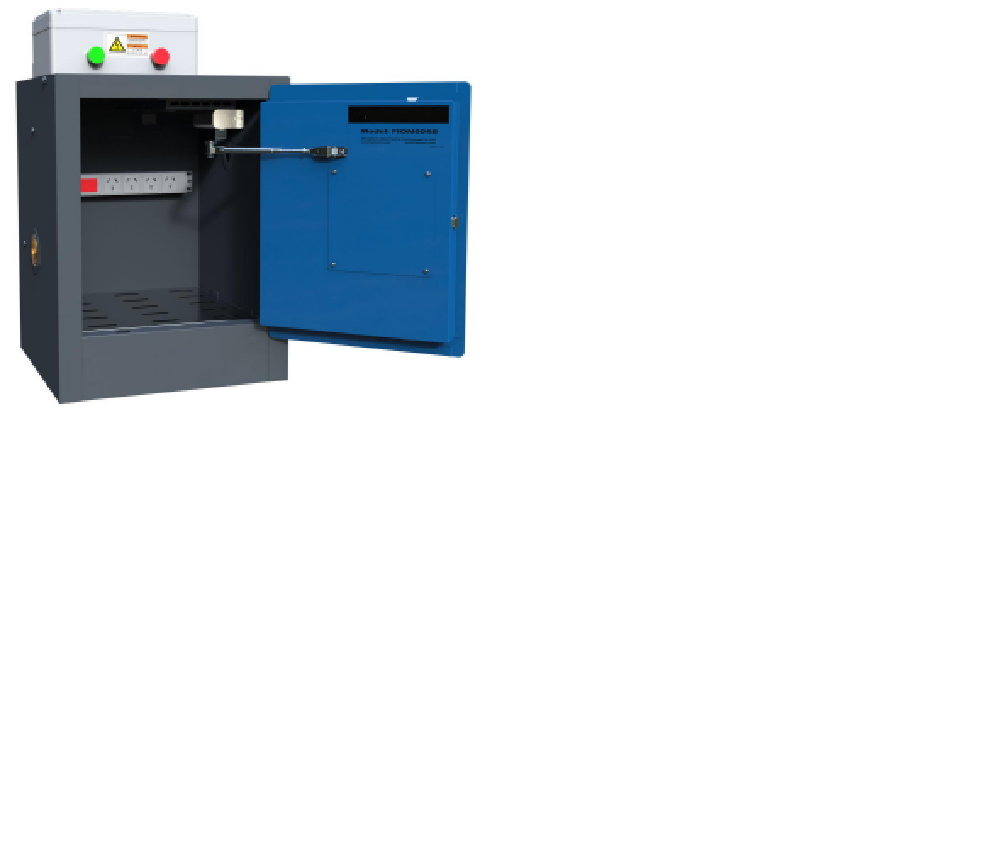

Lithium-Ion Battery Storage Cabinets

The lithium-Ion battery charging cabinet is suitable for the storage and charging of various types of

power tool batteries. The cabinet complies with the FM6050 standard and OSHA 1910.106 of the

American Occupational Safety and Health Association and the NFPA 30 regulations of the American

Fire Protection Association;

2. A highly sensitive smoke detector is installed on the top of the cabinet. When the smoke detector

detects smoke, the buzzer on the front of the cabinet will sound an alarm, and the fan will

automatically cut off the power to prevent the fire from spreading outward;

3. The cabinet is equipped with steel shelves as standard, and each shelf has multiple heat dissipation

ventilation holes to increase the air flow inside the cabinet;

4. The cable connection port has a fireproof function, and the cable connection inside and outside the

cabinet is sealed with fireproof putty;

5. The PDU socket has an automatic power-off function. When the smoke detector alarms, the socket

can automatically disconnect the power supply to avoid accidents;

6. The cabinet has leakage protection and overload protection functions;

7. Working voltage: AC 220V/50Hz;

8. Built-in fan to eliminate the heat generated by charging, the exhaust port can be automatically

closed at 74C to avoid fire spillover;

9. Standard PUD industrial socket, you can choose different types of sockets such as European

standard sockets and British standard sockets;

10. Standard circuit installation to effectively avoid safety hazards caused by line fire;

Specifications

Model No	Fission004B	Dimensions, Exterior	43x43x56cm (WDH)
Color	Blue	Dimensions, Interior	35x43x56cm (WDH)
Numbers of shelf	1 pc	Extraction air	75 DN
Number of Doors	1	Operating Voltage	AC 220V/50Hz
Door Type	Self-Closing	Fire Resistance	10 minutes

Superior Fire Protection

Certified with a 90-minute fire rating and made from epoxy-coated, high-grade steel, this cabinet safeguards lithium-ion batteries against high heat and flames. Its exceptional temperature resistance up to 200C makes it an ideal solution for environments demanding rigorous fire safety.

Comprehensive Safety Features

Equipped with over-temperature and smoke detection alarms, an anti-static grounding terminal, and a secure locking mechanism, this cabinet ensures maximum safety for stored batteries. The removable, chemical-resistant leak tray, integrated ventilation, and spill containment system further enhance the protection offered.

Flexible Storage and Easy Mobility

With four adjustable shelves and a generous 350-litre capacity, the cabinet accommodates a range of battery sizes. Heavy-duty castor wheels allow effortless movement and positioning, while double doors and tempered glass windows simplify access and inventory checks.

FAQ's of Lithium-Ion Battery Storage Cabinets:

Q: How does the lithium-ion battery storage cabinet help prevent fire hazards?

A: This cabinet is designed with a 90-minute fire rating and can resist temperatures up to 200C, utilizing fire-resistant materials and integrated alarms for both over-temperature and smoke, significantly reducing the risk of battery-related fire incidents.

Q: What safety and security features are included in the cabinet?

A: Key safety features include double doors with secure electronic and manual locks, over-temperature and smoke alarms, anti-static grounding terminals, a chemical-resistant removable leakage tray, and a built-in ventilation system with an exhaust port.

Q: When should I use this storage cabinet for lithium-ion batteries?

A: Use this cabinet whenever you need to safely store or charge lithium-ion batteries, particularly in environments where fire safety, organization, and regulatory compliance are crucial such as laboratories, manufacturing units, or workshops.

Q: Where can the cabinet be placed within a facility?

A: Thanks to its heavy-duty castor wheels and rectangular design, the cabinet can be conveniently positioned in warehouses, production areas, or laboratories, allowing flexible placement while ensuring easy access and safety compliance.

Q: What is the process for ventilating the cabinet and managing fumes?

A: The integrated ventilation system includes an exhaust port that continuously expels harmful fumes generated by stored batteries, thereby maintaining air quality and preventing hazardous gas accumulations inside the cabinet.

Q: How does the removable leakage tray work?

A: The cabinet has a chemical-resistant, removable leakage tray positioned at the base, designed to capture and contain spills or leaks from batteries, facilitating easy cleaning and ensuring environmental safety.

Q: What are the main benefits of using this lithium-ion battery storage cabinet?

A: Benefits include enhanced fire and chemical safety, secure and organized storage, real-time condition monitoring via digital display, ease of mobility, and compliance with industry standards for lithium-ion battery management.
