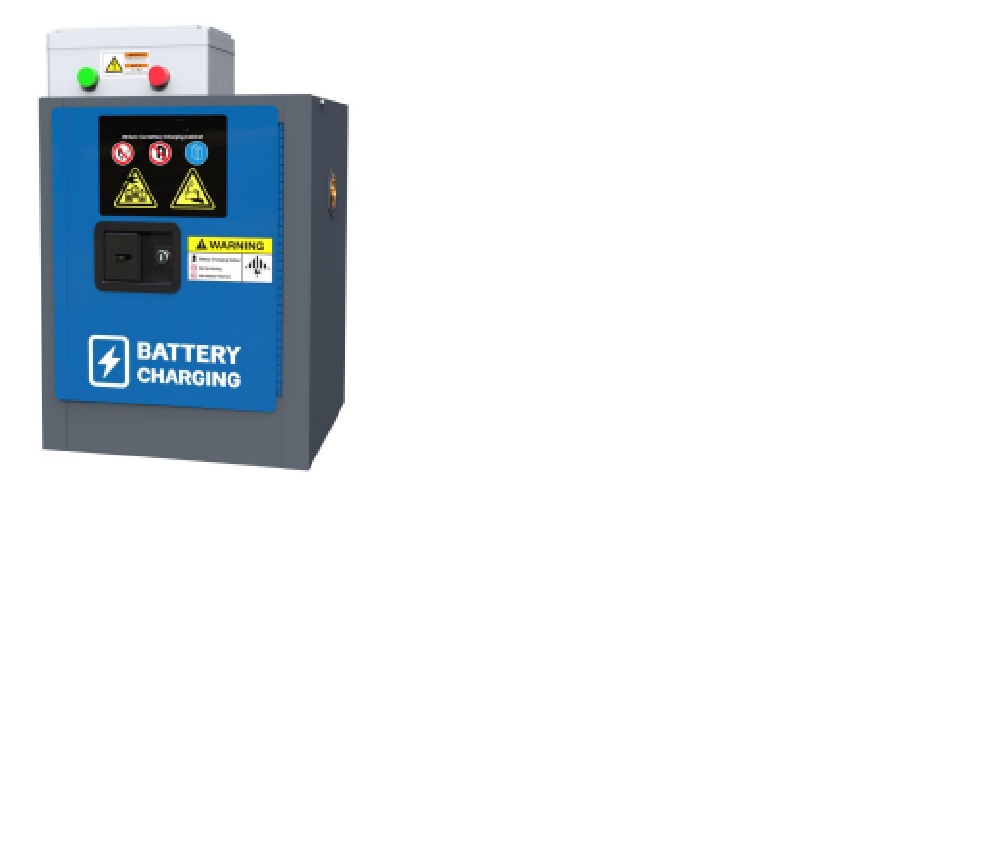

Lithium-Ion Battery Storage Cabinets-12 Lithium-Ion Battery Storage Cabinets-12

Lithium-Ion Battery Storage Cabinets-12

4998.0 INR/Unit
Get a Price/Quote

Product Details:

  • Control Type Digital Touch Control Panel
  • Glass Type Tempered Safety Glass, Double Layer
  • Power Supply Internal Power Extension with Overload Protection
  • Features Fire Protection, Ventilation, Smoke Detection, Lockable Doors, Temperature Monitoring, Alarm System, Static Grounding
  • Temperature Resistance Up to 1200C
  • Display Type LCD Digital Display
  • Shape Rectangular
  • Click to view more
Request To Call Back Send Inquiry
X

Lithium-Ion Battery Storage Cabinets-12 Price And Quantity

  • 1 Unit
  • 4998.0 INR/Unit

Lithium-Ion Battery Storage Cabinets-12 Product Specifications

  • 600 Liters
  • Lithium-Ion Battery Storage Cabinet
  • LCD Digital Display
  • Rectangular
  • Safe Storage of Lithium-ion Batteries
  • Battery Storage Cabinet
  • High-grade Cold Rolled Steel, Epoxy Powder Coating
  • Up to 1200C
  • Fire Protection, Ventilation, Smoke Detection, Lockable Doors, Temperature Monitoring, Alarm System, Static Grounding
  • Powder Coated Steel
  • Tempered Safety Glass, Double Layer
  • 220V
  • Internal Power Extension with Overload Protection
  • 1200 mm x 900 mm x 2100 mm
  • Digital Touch Control Panel
  • AC 220V/50Hz
  • Approx. 320 kg
  • 4 Adjustable Shelves
  • 90 minutes (EN 14470-1)
  • Integrated Audio-Visual Alarm
  • Key and Electronic Lock
  • Yellow (Standard)
  • Self-Closing Doors with Seal Strip

Lithium-Ion Battery Storage Cabinets-12 Trade Information

  • 3 Week

Product Description

The lithium-Ion battery charging cabinet is suitable for the storage and charging of various types of

power tool batteries. The cabinet complies with the FM6050 standard and OSHA 1910.106 of the

American Occupational Safety and Health Association and the NFPA 30 regulations of the American

Fire Protection Association;

2. A highly sensitive smoke detector is installed on the top of the cabinet. When the smoke detector

detects smoke, the buzzer on the front of the cabinet will sound an alarm, and the fan will

automatically cut off the power to prevent the fire from spreading outward;

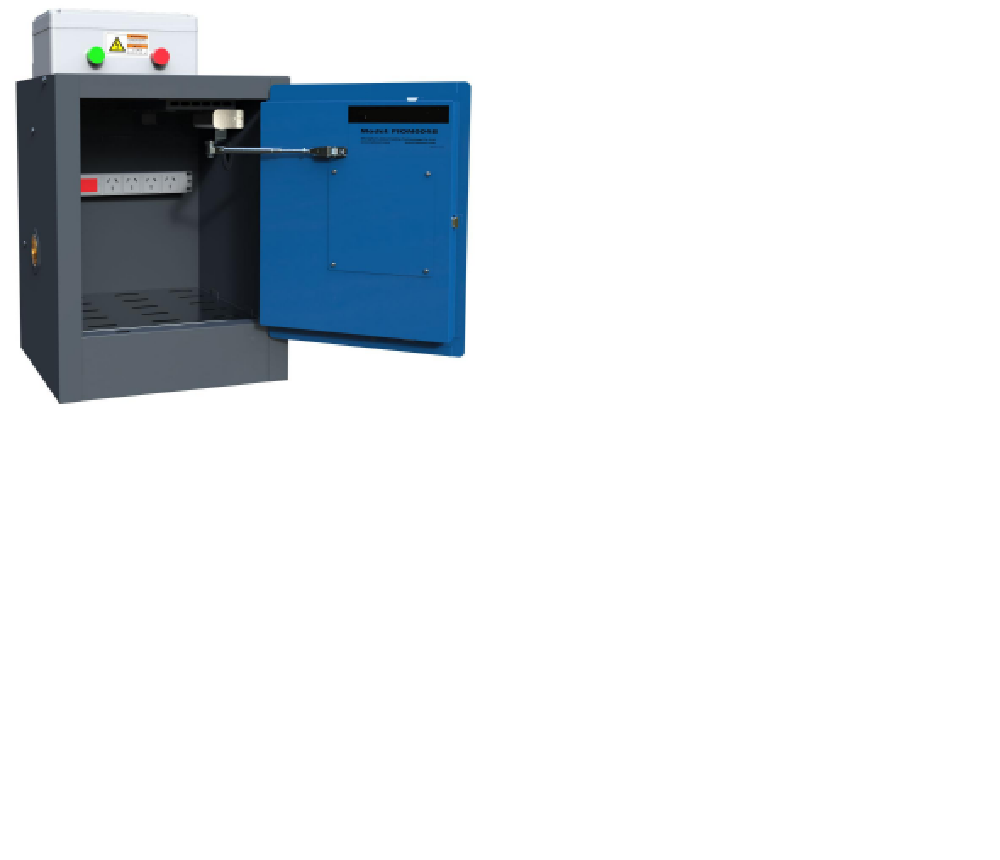

3. The cabinet is equipped with steel shelves as standard, and each shelf has multiple heat dissipation

ventilation holes to increase the air flow inside the cabinet;

4. The cable connection port has a fireproof function, and the cable connection inside and outside the

cabinet is sealed with fireproof putty;

5. The PDU socket has an automatic power-off function. When the smoke detector alarms, the socket

can automatically disconnect the power supply to avoid accidents;

6. The cabinet has leakage protection and overload protection functions;

7. Working voltage: AC 220V/50Hz;

8. Built-in fan to eliminate the heat generated by charging, the exhaust port can be automatically

closed at 74C to avoid fire spillover;

9. Standard PUD industrial socket, you can choose different types of sockets such as European

standard sockets and British standard sockets;

10. Standard circuit installation to effectively avoid safety hazards caused by line fire;


Specifications

Model No

Fission012B

Dimensions, Exterior

59x46x89cm (W*D*H)

Color

Blue

Dimensions, Interior

51x38x79cm (W*D*H)

Numbers of shelf

2 pc

Extraction air

75 DN



Number of Doors

1

Operating Voltage

AC 220V/50Hz



Door Type

Self-Closing

Fire Resistance

10 minutes




Advanced Fire-Rated Protection

This lithium-ion battery storage cabinet provides 90 minutes of fire protection, certified to EN 14470-1, ensuring your valuable batteries are safeguarded during emergencies. Tempered double-layer safety glass offers added resilience, while the cabinet's epoxy powder-coated steel construction withstands temperatures up to 1200C. Suitable for any high-risk electrical or laboratory environment, it delivers reassuring security and compliance.


Comprehensive Safety Features for Battery Storage

The cabinet boasts features such as self-closing doors with seal strips, integrated static grounding, a smoke detection system, digital temperature monitoring, and an audio-visual alarm. With a digital control panel and LCD display, users can monitor conditions at a glance. Overload protection for internal power extension further ensures safe charging or storage, significantly reducing risk in battery handling and storage operations.

FAQ's of Lithium-Ion Battery Storage Cabinets-12:


Q: How does the fire rating benefit my lithium-ion battery storage?

A: The cabinet is rated for 90 minutes of fire resistance (EN 14470-1), effectively containing fire and preventing the spread of flames or heat to stored batteries, providing vital time for responders to take action and minimizing potential damage.

Q: What security measures are in place to prevent unauthorized access?

A: This cabinet includes both a key and electronic locking mechanism, ensuring only authorized personnel can access the batteries. Self-closing doors with a secure seal enhance containment, while the sturdy construction further discourages tampering.

Q: When should I use a lithium-ion battery storage cabinet like this one?

A: These cabinets should be used whenever there is a need to safely store or charge lithium-ion batteries, especially in environments with heightened fire risks such as research labs, manufacturing sites, or commercial facilities handling large battery quantities.

Q: Where can the cabinet be installed and used safely?

A: The cabinet is designed for versatile indoor installation in industrial, commercial, or laboratory settings. It requires a standard AC 220V/50Hz power supply and offers static grounding and ventilation to maximize safety wherever it's placed.

Q: What process does the cabinet use to detect unsafe conditions?

A: The cabinet employs integrated temperature monitoring, smoke detection, and an internal audio-visual alarm system. If temperature thresholds are exceeded or smoke is detected, the cabinet notifies users immediately, allowing rapid intervention.

Q: How do the adjustable shelves and large capacity enhance usage?

A: With four adjustable shelves and a 600-liter capacity, the cabinet can be easily configured to store various battery sizes and quantities. This flexibility makes it ideal for accommodating evolving storage requirements in dynamic workspaces.

Q: What are the key benefits of choosing this battery storage cabinet for my operations?

A: This cabinet delivers advanced safety via fire protection, sensitive detection systems, secure access control, and robust construction. Its integrated features streamline safe storage and monitoring, helping organizations comply with safety standards and significantly reduce fire and handling risks.
