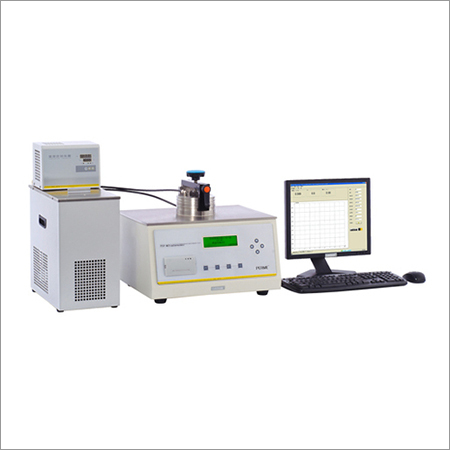

i-Hydro NAC4327500 Water Vapor Transmission Rate Testing System

i-Hydro NAC4327500 Water Vapor Transmission Rate Testing System

Product Details:

X

Product Description

i-Hydro NAC4327500 Water Vapor Transmission Rate Testing System is based on electrolytic detection sensor method. It is available for water vapor transmission rate (WVTR) test of various films, sheeting and finished packages.

Technical Specifications

Test SpecsItemsFilm TestPackage Test (Optional)
Test Range0.001~40 g/m2·24h(Standard)
0.01~1000 g/m2·24h(Optional)
0.0001~0.2 g/pkg·d
Resolution0.001 g/m2·24h0.00001 g/pkg·d
Number of Specimens3 pieces (with independent test results)
Extension9 satellite bases (1-30 specimen tests)
Specimen Size108 mm x 108 mmOne package with temperature control device: specimen should be smaller than 180 mm and lower than 380 mm
Three packages with temperature control device: specimens should be smaller than Ф100 mm,and lower than 380 mm
No size limitation for tests without temperature control
Specimen Thickness≤3 mm/
Test Area50 cm2/
Test Temperature15 °C~55 °C (Standard)
Accuracy±0.1 °C (Standard)
Test Humidity0% RH, 35% RH~90% RH, 100% RH
Accuracy±1% RH
Carrier Gas99.999% high purity nitrogen (outside of supply scope)

Carrier Gas Flow Rate

100 mL/min
Environment Monitoring Specs (Optional)Voltage Monitoring RangeAC 0~250 V, with ±0.5% accuracy
Current Monitoring Range0~15 A, with ±0.5% accuracy
Energy Analysis Accuracy±0.5%
Environmental Temperature
Monitoring Range
-10 °C~55 °C, with ±0.1 °C accuracy
Environmental Humidity
Monitoring Range
0~100% RH, with ±2% RH accuracy
Other SpecsGas Supply Pressure0.28 MPa, 40.6 psi
Port Size1/8 inch Copper Tubing
Instrument Dimension690 mm (L) x 350 mm (W) x 360 mm(H)
Power SupplyAC (85~264) V (47~63) Hz
Net Weight71 kg
ConfigurationsStandardMainframe (including Wireless Data Interface), Professional Software, LCD Monitor, Keyboard, Mouse, Vacuum Grease, Diamond Sampling Template, Valve Set
OptionalEnvironment Monitoring Sensors (including voltage, current, and humidity sensors), Accessories for Package Test, Satellite Base, Temperature Control Device for Package Test, Reference Films, Seal Accessories for Package Test, Sample Cutter, Vacuum Grease, Printer (compatible with PCL3)
Online Data Management System for Packaging TestingWireless Data Transfer Module, High Gain Antenna
