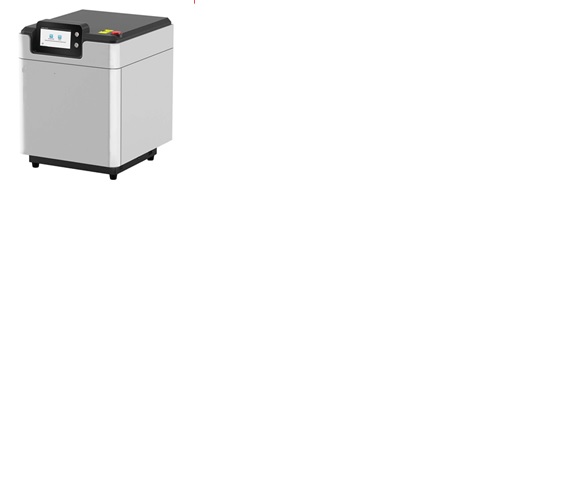

Microwave Digestion System
Microwave Digestion System is widely used in analytical chemistry, environmental science, and various fields of research and analysis where sample preparation is critical. These systems use microwave radiation to heat and digest samples for chemical analysis.
Elemental Analysis, Pharmaceuticals, Geology and Mining, Petrochemical Industry, Environmental Monitoring,
Clinical and Biological Research, Forensic Science, Material Characterization, Research and Method Development, Quality Control.
Salient Features
Oponal vessel quanty, up to 12 vessels to meet different diges on requirements.
Vercal design for even distribuon on of microwave.
Real- time monitoring for both temperature and pressure of each vessel.
Contactless sensor monitoring saves consumables cost and maintenance cost.
Imported vessel material for both sample vessel and protection vessel highly ensures safety.
7 inch color Touch screen with user-friendly interface for easy operation
CFRP outer shell material with high strength ensures impact resistance.
Pre-installed general standard methods, users can also create, save, modify and delete the method.
316L Stainless Steel tank with multilayer Teflon coa ng avoids acid corrosion, also improved cooling efficiency.
Specification
|
Model |
Microwave Digestion System |
|
Vessel Quantity |
6/12 |
|
Temperature Monitoring System |
Contactless IR Sensor Temperature Monitoring, each Vessel Temperature Controlled |
|
Temperature Controlling Range |
50~400 |
|
Temperature Accuracy |
0.1 |
|
Pressure Monitoring System |
Contactless Sensor Pressure monitoring each Vessel Pressure Controlled |
|
Pressure Controlling Range |
0~15MPa |
|
Pressure Accuracy |
0.01MPa |
|
Vessel Volume |
100ml |
|
Vessel Material |
TFM (Modified PTFE) |
|
Protection Vessel Material |
Peek+Glass Fiber |
|
Rotation |
One Direction 360 continuous rotating |
|
Display |
7 inch Touch Screen |
|
Software |
In-Built |
|
Microwave Tank |
316L Stainless Steel tank with corrosion-proof coating |
|
Microwave Power |
0-1000W (Adjustable) |
|
Microwave Leakage |
<5mw/cm2 |
|
Air Exhaust |
High power corrosion-proof air blower |
|
Power |
AC 220V10%, 10A, 50/60Hz |
|
Dimension |
490560630mmLWH |
|
Net Weight |
47 kg |
|
Gross Weight |
52 kg |
Microwave Digeson system is user friendly which ensure easy and simple operation.
User can also create, edit, save, modify and delete their own methods.
Price:
