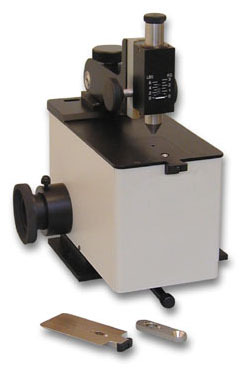

High Energy Universal Sampler HATR

High Energy Universal Sampler HATR
High Energy Universal Sampler HATR
Product Code : 311
Product Description

This new single reflection Horizontal ATR has the highest energy throughput of any ATR accessory on the market today. The energy throughput exceeds 85% and is made possible by coating the ZnSe prism with an efficient broadband anti-reflective coating and by the single reflection prism design. Samples are easy to deposit on the top surface of the ZnSe prism which is mounted horizontally in a stainless steel top plate which is easy to clean. The High Energy HATR enables qualitative and quantitative sampling of most routine samples, such as pastes, liquids and flexible solids. The accessory incorporates Constant Purge for uninterrupted system purge. Crystals are easily removed for cleaning and reconditioning. A pressure applicator is included for solid samples. Has 45° specular reflection stage.

Available options include a trough plate, a flow through liquid cell, a temperature controlled liquid cell and a reactor. The reactor is heatable to 250° C and can be pressurized to 8432 psi. ZnS and Ge crystal prisms are also available as an option.

Part No.

Description

43215-7458

High Energy HATR, with Constant Purge, ZnSe prism mounted in Stainless Steel Top Plate and pressure applicator, and mounting hardware for specified spectrophotometer.

43215-7459

Trough Top Plate, 0.9ml sample volume, ZnSe prism mounted in Stainless Steel Top Plate

43215-7461

Flow Through Liquid Cell attachment for 43215-7459, with luer lock filling ports, PTFE stoppers, 0.1ml volume, 316 Stainless Steel

43215-7460

Reaction vessel, 316 Stainless Steel, pressurizable to 8432psi, heatable to 250°C, includes 2 heaters and type K thermocouple, and plug connections for temperature controller. Requires temperature controller

43217-5548

High Stability PID Temperature Controller for 43215-7460, 115v, RS-232 interface and Windows based software for PC control, digital readout, keypad or PC programmable for ramp up, ramp down, set point, and soak (dwell) time as well as for temperature settings, digital readouts of all parameters

43215-7462

Replacement ZnSe Prism for 43215-7458
