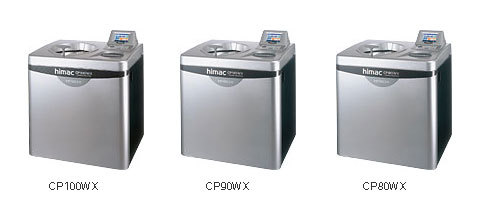

CP-100WX CENTRIFUGE

CP-100WX CENTRIFUGE
CP-100WX CENTRIFUGE
Product Code : 724
Product Description

 CP-100WX CENTRIFUGE

Features

  • Easy operation
  • Microcomputer control functions
  • Color liquid crystal display and touch-sensitive panel
  • User name is shown on screen, linked to user ID code
  • Powerful customization functions
  • Low table height easier rotor handling
  • Real-time control (RTC) simplifies timer settings
  • Operating parameters are automatically computed and displayed, based on selected RCF
  • Important functions are shown on screen
  • Advanced technology
  • The highest acceleration and RCF for its class 100,000 rpm, and RCF to 803,000 x g
  • Drive unit warranted for 10 years
  • Powerful imbalance protection
  • Rotor life is automatically managed
  • Rotor life is automatically extended
  • Safety and environmental impact reduction
  • 0°C is maintained by electronic cooling
  • Energy savings
  • Exceptionally low noise 53 dB or less
  • Based on EU requirements for mechanical and electrical safety and electromagnetic compatibility
  • Brake control system for reverting motor electric power to the power source side
  • Ecoproduct



Specifications

Model

CP100WX



Max. speed (rpm)

100,000



Max.RCF (xg)

803,000
(P100AT2 rotor)





Speed control accuracy

±10 rpm (1,000 rpm to maximum speed)

Set speed

1,000 rpm to maximum speed in increments of 100 rpm

Displaying and setting RCF

Applicable (RCF max. or RCF average)

ω2T run

Applicable

Drive unit warranty

10 years

Rotor temperature control / display accuracy

±0.5ºC (set temperature is from 0ºC to 40ºC)

Cooling method

Thermo-module cooling (CFC/HCFC-free)

Operation panel

. Color liquid crystal display (256 color) and keyboard
. Touch-sensitive panel (run screen only)

Rotor life management

RLM rotor: automatic management,
Rotor with optical adaptor: management by registration system

Operation results management system /
calculation & simulation system

Optional software (CD-ROM, OS: Windows® XP Professional / 2000 Professional)
This option requires a PC and RS232C cross cable on the market.

Vacuum system

Oil-rotary vacuum pump with moisture removal function and oil diffusion pump.

HEPA filter

Option

Operational noise (dB(A))

53

Heat radiation into the room

1 kW or less

Dimensions (mm)

790 (W) x 690 (D) x 1,000 (H), depth with safety cover: 890, height to the table: 850

Floor area (m2)

0.81 (900 x 900 mm)

Weight (kg)

400

Power requirements

Single phase, 50/60 Hz,
AC200/208/220 V ±10%, 20 A max. (normally 8 A)
AC 230/240 V ±10%, 16 A max. (normally 7A)

Conformity to EMC * standards

The CP-WX Series ultracentrifuges conform to the following EMC standards:
EN61326, EN61000-3-2, and EN61000-3-3
