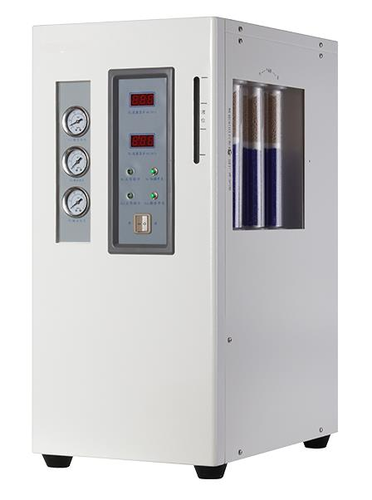

NAC-300 NITROGEN HYDROGEN AIR GENERATOR (3 IN 1)

Product Description

Features:

1. It can replace traditional high pressure cylinders. N2, H2 and air

are generated separately or together, intermittently or

continuously. The purity of gas will not decay for long time use.

2. Easy to operate, switching power on to produce gas, regular

output flow, completely automatic tracking equipment.

3. Generate nitrogen through world’s leading Pressure Swing

Adsorption (PSA) technology, which replaces the traditional

electrolyte separation technology.

4. It is safe and convenient to operate, has no corrosion toward instrument and supplies gas

for 24 hours.

5. Generate hydrogen through lye hydrogen production technology.

6. It’s powered by whole sealing silent air compressor. After purification, water, oil, dust

and impurities are removed. Through pressure stable system, pure and silent air is finally

produced under stable pressure.

Model NAC300

Gas Type N2 H2 Air

Output Flow 0~300ml/min 0~300ml/min 0~1000ml/min

Output Pressure 0~0.4MPa

Purity 99.99% 99.999% Three level Purification

Power Consumption <350W

Power Supply AC110/220±10%, 50/60Hz

External Size (W*D*H)mm 440*440*475

Package Size (W*D*H) mm 600*600*630

Net Weight (kg) 55

Gross Weight (kg) 65
