Convenient Hydrolysis and Derivatization

Convenient Hydrolysis and Derivatization
Convenient Hydrolysis and Derivatization
Product Code : 511
Product Description

Convenient Hydrolysis and Derivatization

1. Convenient hydrolysis and derivatiztion

2. High throughput

3. Completely integrated WorkStation

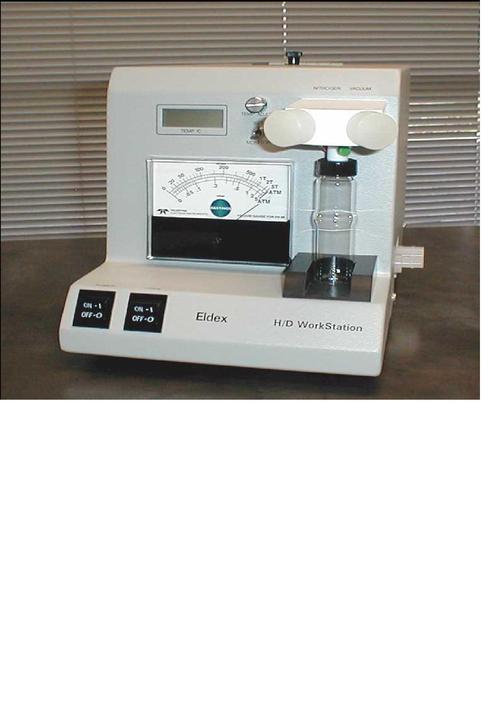

The Eldex Hydrolysis/Derivatization WorkStation provides a convenient and easy to use system for the

hydrolysis and derivatization of samples prior to amino acid composition analysis.

Convenient Hydrolysis and Derivatization

The WorkStation provides all the functions for sample hydrolysis. Vacuum and nitrogen ports are easily

accessed from the front panel. Reaction vial assemblies can accommodate up to 12 sample tubes

simultaneously. A Dewar flask and cold finger are provided to prevent contamination. The integral heater,

capable of temperatures up to 150ºC, provides stable temperature control for up to 4 reaction vial assemblies.

Specifications:

 Maximum Temperature: 150° Celsius.

Minimum Temperature: 5° Celsius above ambient.

Stabilizing Time: Ambient to 60° Celsius in 10 minutes.

Temperature Stability: ±1.0 Celsius, or better over a 10 min. period)

Temperature Repeatability: ±0.5 Celsius, or better of front panel setting.

Vacuum capability: 60 millitorr in 6 min.

Maximum N2 inlet pressure: 8 psi

Temperature Repeatability: ±0.5 Celsius, or better of front panel setting

Dimensions (DxWxH): WorkStation: 47 cm x 24.4 cm x 24.8 cm (18.5 in x 9.5 in x 9.75 in).

Cold Trap: 18.4 cm x 18.4 cm x 33 cm (4.25 in x 7.25 in x 13 in).

Weight:WorkStation: 7.47 kg (16.25 lbs).

Cold Trap 4.2 kg (9.25 lbs).

Electrical: Voltage/Frequency: 115-230VAC/50-60Hz.

Fuse: 3.0 A slo-blo (100/120V); 1.5 A slo-blo (220/240V)
