Home » Products » SHIMADZU UV-VIS MINI SPECTRPHOTOMETER UV-1240 » SHIMADZU UV-VIS MINI SPECTRPHOTOMETER UV-1240

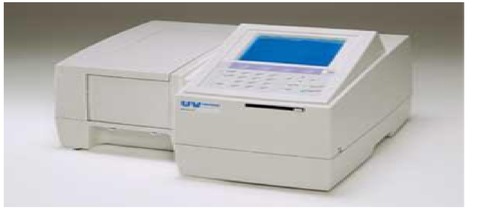

SHIMADZU UV-VIS MINI SPECTRPHOTOMETER UV-1240

 SHIMADZU UV-VIS MINI SPECTRPHOTOMETER   UV-1240
SHIMADZU UV-VIS MINI SPECTRPHOTOMETER UV-1240
Product Code : 604
Brand Name : SHIMADZU
Product Description

UV-1240 SHIMADZU UV-VIS MINI SPECTRPHOTOMETER WITH SOFTWARE BY SHIMADZU

 NEW SEALED PACKED ORIGINAL COMPANY PACKING BY SHIMADZU, JAPAN

 Manufactured by Shimadzu Corporation Japan

Specifications :

Wavelength range : 190.0-1100 nm

Display wavelength : 0.1nm step

Selectable wavelength : 0.1nm (1step in spectrum mode)

Scan speed : Wavelength change approx 3800 nm/min

Scan : approximately 24~1400nm/min

Light source : 20W Halogen Lamp,Deuterium

Lamp(socket type)

Auto adjustment for maximum sensitivity

Measuring method : single beam measurement

Detector : silicon

Spectrum bandwidth : 5nm

Wavelength accuracy : ±1.0 nm

Wavelength repeatability : ± 0.3nm

Stray light : less than 0.05%

Photometric range : Abs: - 0.3 ~ 3.0abs

Transmittance : 0.399~399%

Photometric accuracy : ± 0.005 Abs ( at 1.0 abs ), ± 0.003 Abs (at 0.5 Abs)

Photometric repeatability : ±0.002 Abs (at 1.0 Abs)

Baseline stability : less than ±0.001 Abs/h (after 2 hr warm-up)

Baseline flatness : less than ±0.010 Abs(after 1 hr warm-up, at 1100~200nm)

Noise level : less than 0.002 Abs, Peak to

Peak,less than 0.0005 Abs, RMS

Baseline Correction : Auto correction with the computer memory

Monochromator : Incorporates aberration-correcting concave blazed holographic grating

Sample Compartment : Interior dimensions: W110.0 x D230.0 x H105.0 mm

(partial depth:155.0mm)

Display : 6" LCD(320 x 240 dot) with CFD lighting with contrast adjustment

Power supply : 220~240V 50/60 HZ 160VA
